Roll to Roll Slitting Machine FM-CFT-R300

The FM-CFT-R300 is a roll to roll slitting machine designed for cutting electrodes for cylindrical or pouch cell batteries from a continuous supply roll. The slitting die incorporates high precision tungsten alloy blades for clean and repeatable slitting operations. Multiple points of adjustment to the system allows the CFT-R300 to slit a wide variety of materials and thicknesses. Key Features: -Ultra-fine tungsten alloy blades provide superior performance and lifespan -Precision blades offer high accuracy cuts with minimal burrs or artifacts -Blade speed is independently adjustable relative to substrate speed -Capable of slitting a variety of materials and thicknesses -Automatic tension control system with multiple points of adjustment -PLC controls for easy and repeatable operation

Precision Stacking Machine FM-NXT150

The FM-NXT150 Precision Stacking Machine (Pat. Pending) is designed for accurate Z type stacking of single or multi-layer pouch cells. The stacker incorporates adjustable electrode guides to easily accommodate a variety of cell sizes. The hold down clamp assembly and separator carriage can be easily removed to fit the stacker through a large glovebox antechamber. Key Features: -Designed for lab scale prototyping of single or multi-layer cells -Capable of accommodating a wide range of electrode sizes -Stacker will fit through most large antechambers with minimal disassembly -No power or compressed air required -High accuracy adjustable guides and stack alignment -Easily maintained separator/anode/cathode offsets -Minimal maintenance needed -100% designed, fabricated and assembled in the United States

Ultrasonic Welding Machine FM-CSH1000

The FM-CSH1000 Ultrasonic Welding Machine is designed for battery research and development in a laboratory setting. It produces very strong welds with low internal resistance, and offers a clean final weld appearance without any traces of oxidation. A variety of weld parameters can be adjusted for improved strength, layer penetration and conductivity in a wide range of materials. Key Features: -Superior weld conductivity with near zero internal resistance -Welding oxidized or contaminated surfaces is not an issue -No flux preparation or pre-treatment needed for parts -Welds in as little as 0.01 seconds -Wear resistant weld head reduces maintenance and down time

High Power Ultrasonic Welding Machine FM-CSH2000

The FM-CSH1000 Ultrasonic Welding Machine is designed for battery research and development in a laboratory setting. It produces very strong welds with low internal resistance, and offers a clean final weld appearance without any traces of oxidation. A variety of weld parameters can be adjusted for improved strength, layer penetration and conductivity in a wide range of materials. Key Features: -Superior weld conductivity with near zero internal resistance -Welding oxidized or contaminated surfaces is not an issue -No flux preparation or pre-treatment needed for parts -Welds in as little as 0.2 seconds -Wear resistant weld head reduces maintenance and down time -2000W power enables larger welds through more layers simultaneously

Pouch Emboss Machine FM-CK200

The FM-CK200 Pouch Emboss Machine quickly and reliably fabricates embossed battery cases from flat polymerized foil squares. The precision dies ensure clean and accurate case fabrication without wrinkling or corner collapse. Designed with multiple safety features including dual activation triggers and an IR safety sensor, the CK200 is quick, safe, and reliable. Key Features: -Emboss dies are customizable and easy to replace -Emboss depth is easily adjusted -Produces clean cases with no corner collapse or wrinkling -Dual hand emboss activation ensures safe operation -Features an IR safety sensor to prevent injury -Protective shield is included -Integrated cycle counter keeps track of pouch fabrication

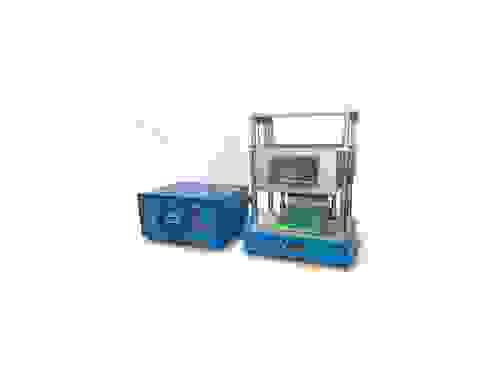

3 in 1 Vacuum Sealer FM-RJY200

The FM-RJY200 3 in 1 Vacuum Sealing Machine is used to seal the edges of a pouch cell without vacuum, seal a cell under vacuum, and degas and reseal a pouch cell after electrolyte injection. This model is customizable and can also be utilized for electrolyte diffusion. The RJY200's small size and separate control unit is ideal for use in a glovebox. Key Features: -Top & side edge heat sealing without vacuum -Electrolyte diffusion cycle without sealing -Vacuum/final seal cycle -Independent upper and lower seal bar temperatures -Copper seal bars provide superior heat transfer -View port allows for observation while sealing or diffusion is in progress -Multi-stage adjustable cycles for customized diffusion -Aluminum chamber reduces total weight and provides superior corrosion resistance -Touch screen operation

Semi-Automatic Stacking Machine FM-SAS200

The FM-SAS200 Semi-Automatic Stacking Machine is designed to assemble anode, cathode, and separator materials in a Z fold configuration for pouch cell battery fabrication. Utilizing PLC control and automation, the SAS200 is capable of accurately stacking up to 500 layers or 30mm. Manual operation consists primarily of loading materials and adjusting stack settings. Both the electrode placement and separator manipulation is automated, which allows for more efficient and accurate assemblies.
